Orsat Apparatus

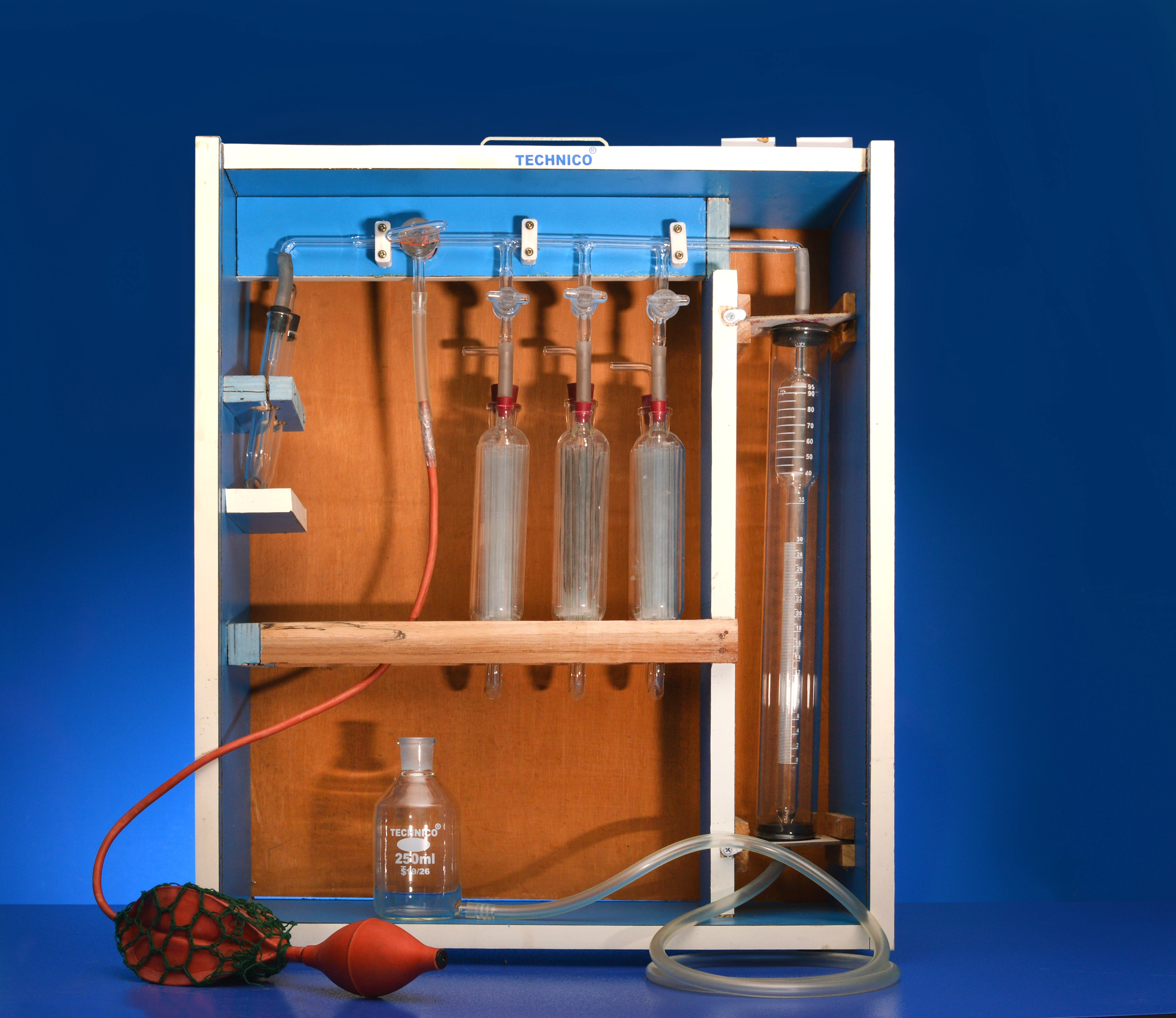

7340-Gas Analysis Apparatus
| Product Code | Components | Quantity Per Case |
|---|---|---|
| 73401214 | For the analysis of CO₂, CO and O₂. Comprising of levelling bottle, 100 ml gas burette with outer jacket, three absorption pipettes (two filled with glass tubes and one with copper spiral and glass tubes), 3-test manifold, calcium chloride tube and rubber bellow. In wooden case with sliding doors. | 1 |

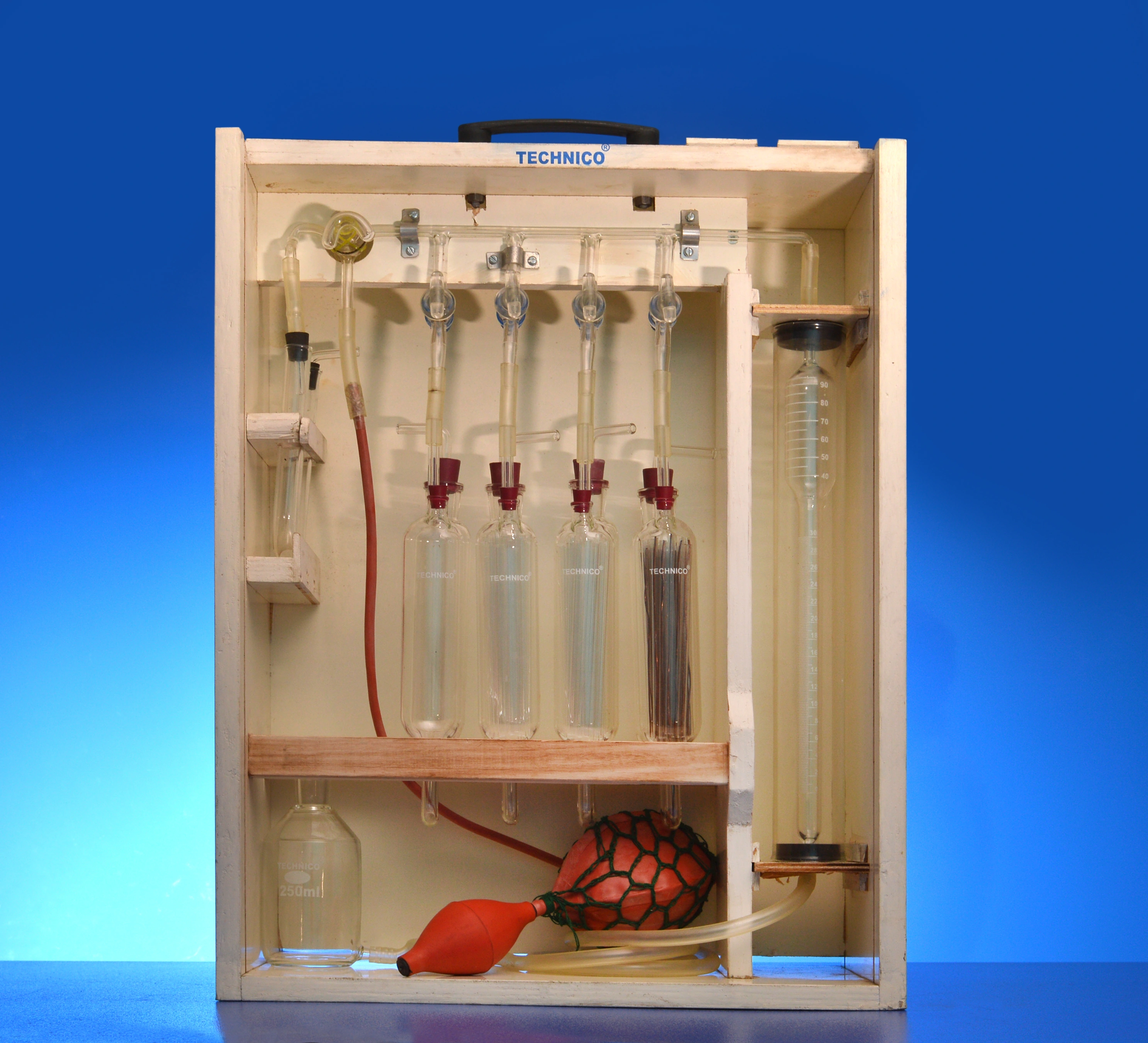

7360-Analysis Apparatus, 4-Test, Orsat
| Product Code | Description | Quantity Per Case | |
|---|---|---|---|
| 73601215 |
Similar to 7340 in general design but with four pipettes and a palladium asbestos tube. This is for the analysis of CO, CO₂, O₂, H₂, and nitrogen (by difference). Comprising of levelling bottle, 100 ml gas burette with outer jacket, four absorption pipettes (Two filled with glass tubes, one filled with copper spiral and glass tubes and the other plain). Palladium asbestos tube, adjustable spirit lamp, 4-test manifold, calcium chloride tube and rubber bellow. In wooden case with sliding doors. |
1 | |
|
|||
7380-Gas Analysis Apparatus, with Bubbling Pipettes
| Product Code | Components | Quantity Per Case |
|---|---|---|
| 73801216 |
Similar to 7340 in general design but the pipettes are valveless automatic bubbling type and the manifold is provided with 120° stopcocks. Comprising of levelling bottle, 100 ml gas burette with outer jacket, three bubbling type pipettes, manifold and rubber bellow. In wooden case with sliding doors. |
1 |
